Underground Transportation

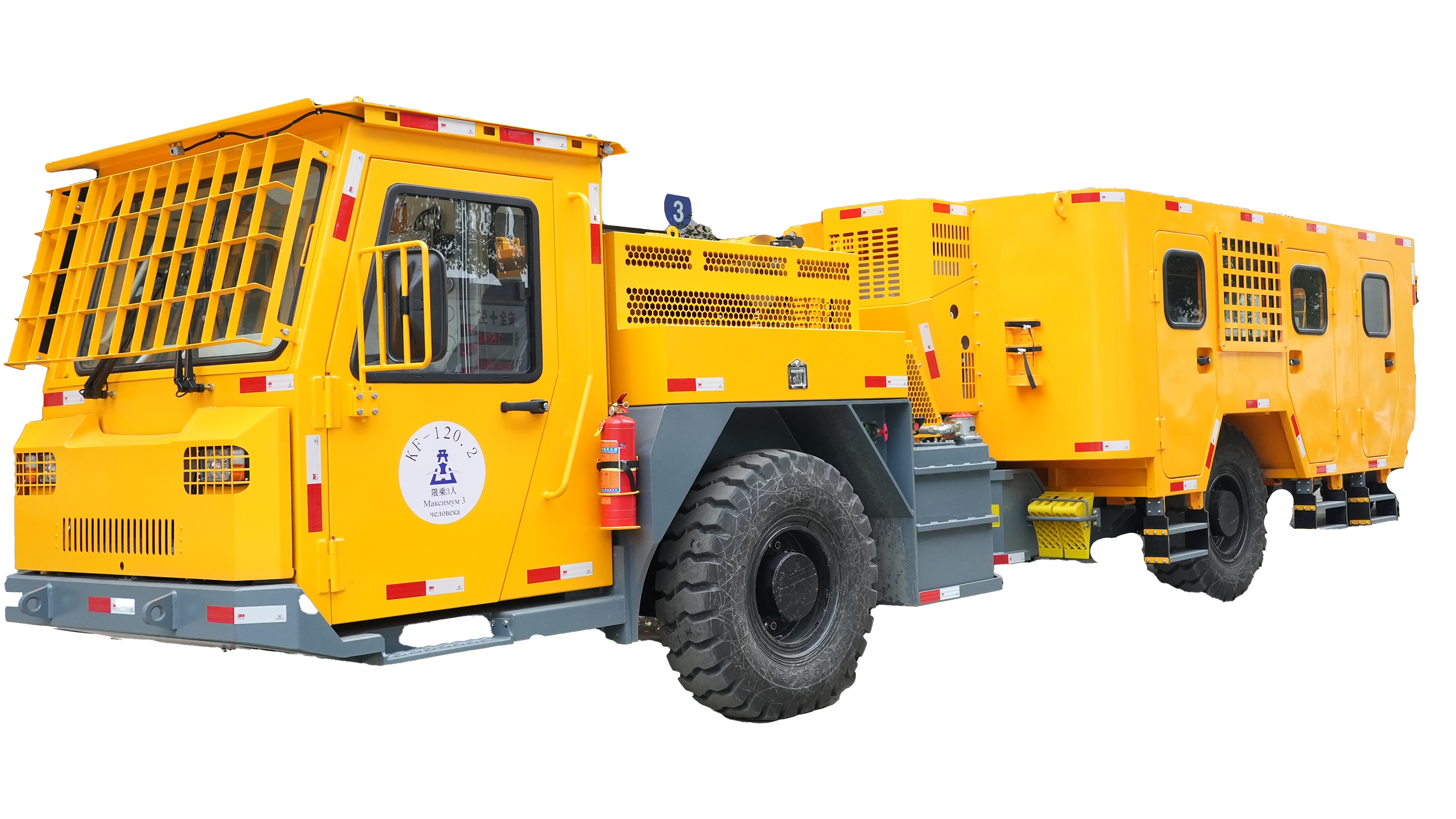

KF-120 Personnel carrier

Dimensions（L×W×H mm）

8222±50×2431±50×2305±50

Weight（kg）

11800±200

Number of passengers

Gradability(°)

Maximum traction(kN)

sales hotline

Get a quote

product details

Technical Parameters

KF-120 Personnel carrier

The KF-120 personnel carrier is a self-propelled, diesel-powered, tire-equipped vehicle designed for transporting personnel in metal and non-metal underground mines without explosion-proof requirements. Developed by our company based on technical specifications for small-to-medium-sized mine tunnels and strictly adhering to national regulations and standards, this commuter vehicle facilitates the descent and ascent of work crews to and from underground operations.

This equipment features a modular design with a compact structure for easy maintenance. Its use significantly enhances operational efficiency and safety.
The undercarriage employs a hydraulic-mechanical transmission system with an articulated frame and rubber-tired wheels, delivering high travel speeds, smooth gear changes, a compact turning radius, and exceptional hill-climbing capability.
Braking System: Service brakes utilize fully enclosed multi-disc wet spring-applied brakes. The hydraulic brake circuit is single-circuit, equipped with an emergency pressure release device. The parking brake is a normally closed mechanical brake with hydraulic release, ensuring reliable braking performance and safety assurance.
Fully enclosed cab and passenger compartment with climate control.
The drive train employs a torque converter to drive the transmission shaft. Featuring full-time four-wheel drive, the torque converter offers three forward and three reverse gear ratios, delivering stable operation, smooth handling, and high automation.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
