Intelligent Mining Hydraulic Drilling Rig

KS313i Intelligent Mining Hydraulic Drilling Rig

Dimensions (L*W*H mm)

11000×2300×3450

Weight（kg）

25000

Φ Aperture(mm)

42-102

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

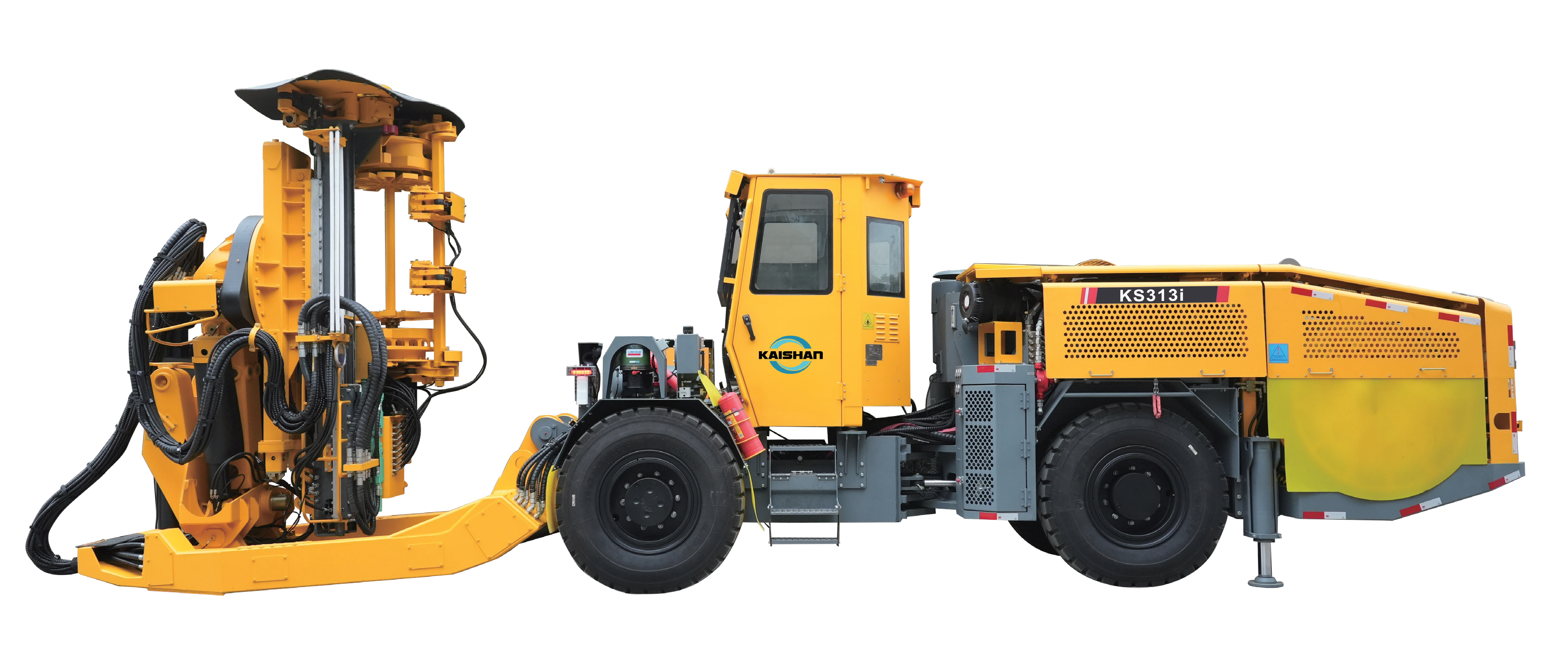

KS313i Intelligent Mining Hydraulic Drilling Rig

The KS313i intelligent mining hydraulic drilling vehicle is specially designed for mining tunnels with a cross-section of no less than 3.6x4.2m. It can automatically drill medium to deep blasting holes. The independently developed intelligent module can accurately complete 360° drilling at the required position, angle and depth automatically. With its features of high precision, high efficiency and simple operation, it strongly supports intelligent mining operations in mines.

・High-precision intelligent control

・Intelligent Data Transmission System

・Global flexible drilling

・Superior adaptability in multiple working conditions

・Safety protection and convenient maintenance

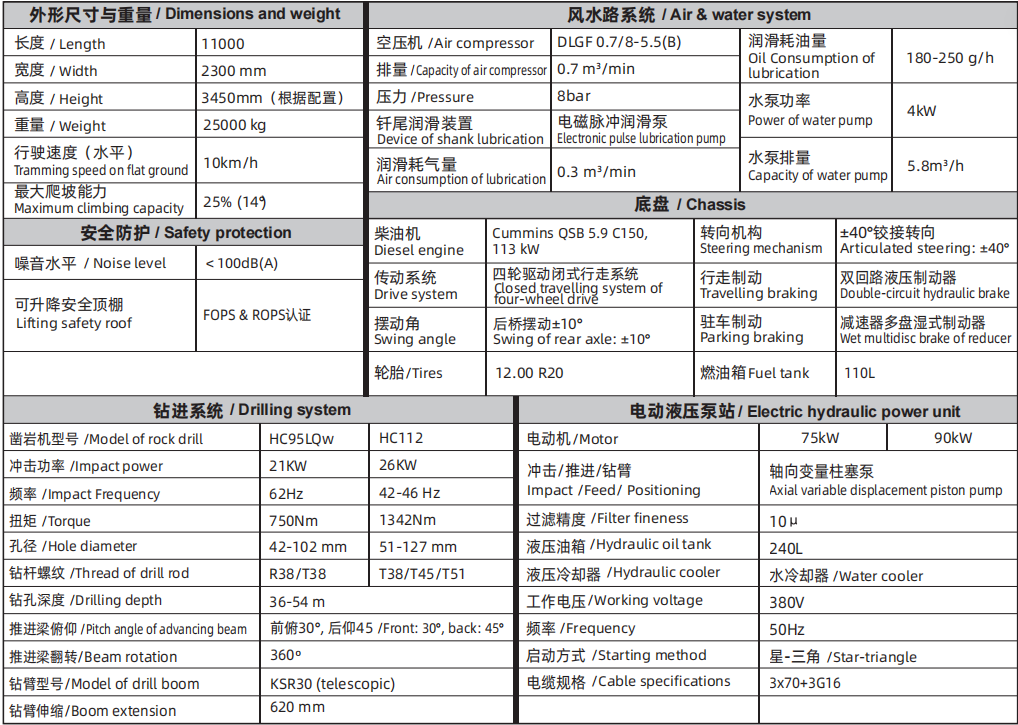

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
